Products
Membrane manufacturing lines
Simple flat membrane fabricating equipment
Simples structure and easy operation
Suitable for R&D work on the effect of process condition on flat membrane manufacuring and structure
Low price
 |
 |
Hollow fiber membrane module manufacturing machine

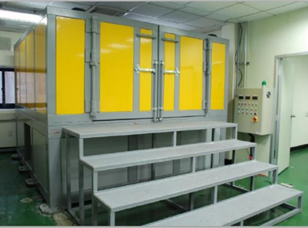

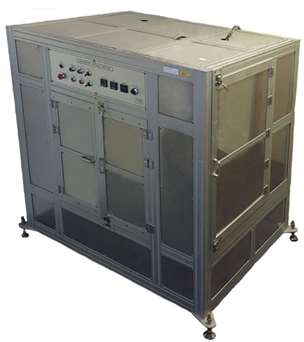

Membrane module potting machine
Potting machine (P-301CH) horizontal
Module diameter: Max. 12 inches
Module length: Max. 200 cm
Rotor RPM : Max. 350
Centrifugal potting, mounting module horizontally
Potting temperature : 60 ℃ ↓
Potting machine (P-301CV) Vertical
Module diameter: Max. 12 inches
Module length: Max. 200 cm
Rotor RPM : Max. 350
Centrifugal potting, mounting module vertically
Potting temperature : 60 ℃
Potting machine (P-302F2) Flowing type
Module diameter: Max. 12 inches
Module length: Max. 200 cm
Feeding of potting resin : automatic
Centrifugal potting, mounting module vertically
Potting temperature : 60 ℃

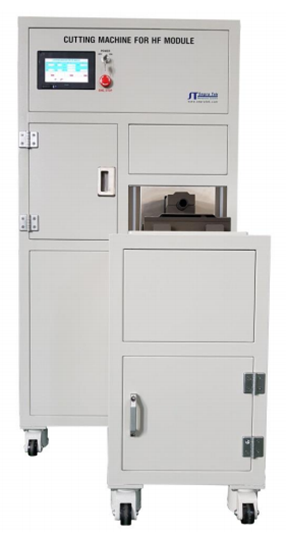

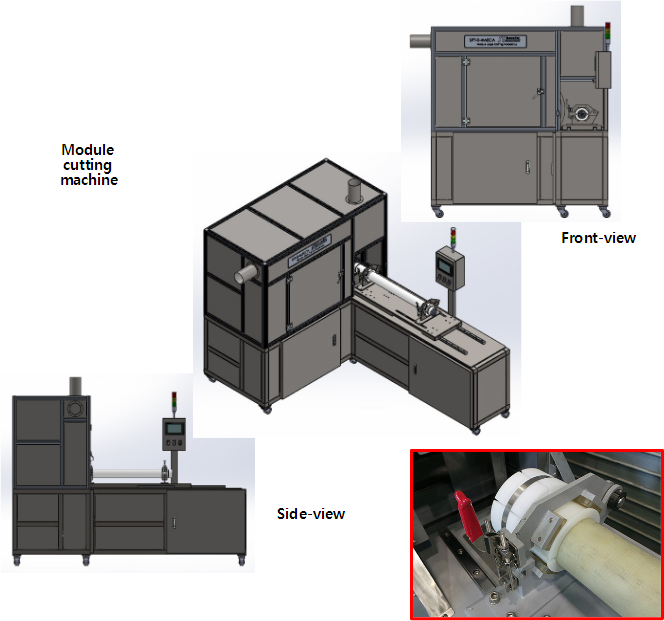

Membrane module cutting machine
Module cutting machine (C-101B)
Module diameter to be cut : 0.5 ~ 2 inches
Determining a coordinate for cutting by the laser sensor and precision cutting by a servo motor
Equipped with electrical heating system to heat the cutting edge.
Disc type of Blade
PLC-based controlling system and user friendly operation via touch screen.
Equipped with safety device during operation: automatic stop of cutting operation when the door is opened or closed.
Module cutting machine (C-201BS)
Module diameter to be cut: 0.5 ~ 2 inches
Determining a coordinate for cutting by the laser sensor and precision cutting by a servo motor
Equipped with electrical heating system to heat the cutting edge.
Dual cutting system: Guillotine type of blade and disc type of saw
Dust collection system
PLC-based controlling system and user friendly operation via touch screen.
Equipped with safety device during operation: automatic stop of cutting operation when the door is opened or closed.

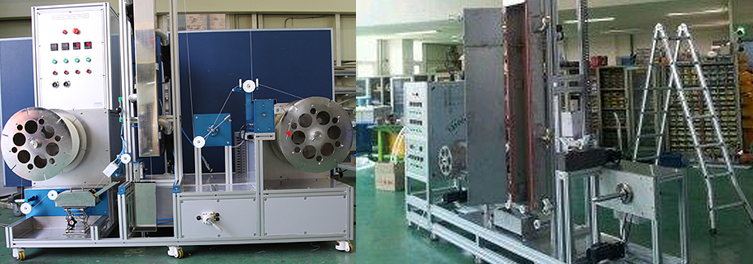

Coating machine for hollow fiber membrane

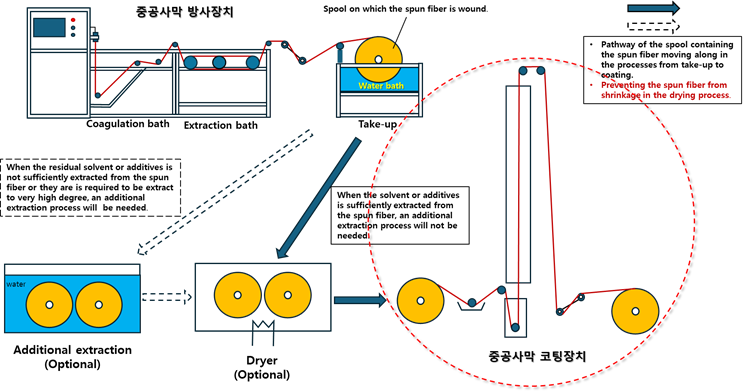

Manufacturing and coating processes for hollow fiber membrane
